Facebook Photo Storage

1. Introduction

Binary Large OBject

- Unstructured: video, jpg
- Immutable: a post contents will not be modified

Current scale

- Over 400 billion photos stored in BloB system
- The world's largest photo store

Blob hotness and age

- Access cool down overtime

- Hot data and warm data

2. Storage Solutions

Haystack 2008

• High throughput
• In memory index (store in group)
• Single I/O per request
• Multiple copies
• Failure tolerant
• RAID6
• 2 Redundant drives
• 1.2x replication
• with 3 hosts: 3.6x space, e.g., 100PB raw = 28 PB Usable
• Multiple copies
• 3 copies in different data centers

Warm Storage

• Redundancy still required
• Read throughput much less
• Ever growing
• Can we do better than 3.6x?
• Yes, F4

F4

• RS Encoding
• Redundancy != Replication
• Leverage need for less throughput
• Space saving
• 2.1x from 3.6x
• Example
• Hot contents through Haystack

• Warm contents through f4

3. F4

Warm storage problem

• Need to store (warm) data efficiently
• Storage must be highly fault tolerant
• Read latency should be comparable to haystack
• Load is NOT primary concern

Solution: f4

• 2.1x replication factor compared to haystack's 3.6x
• Yet more fault tolerant than haystack!!

Design of f4

• Data splitting RS(5,2)
• Use two parity blocks for each 5 blocks, and group to a stripe

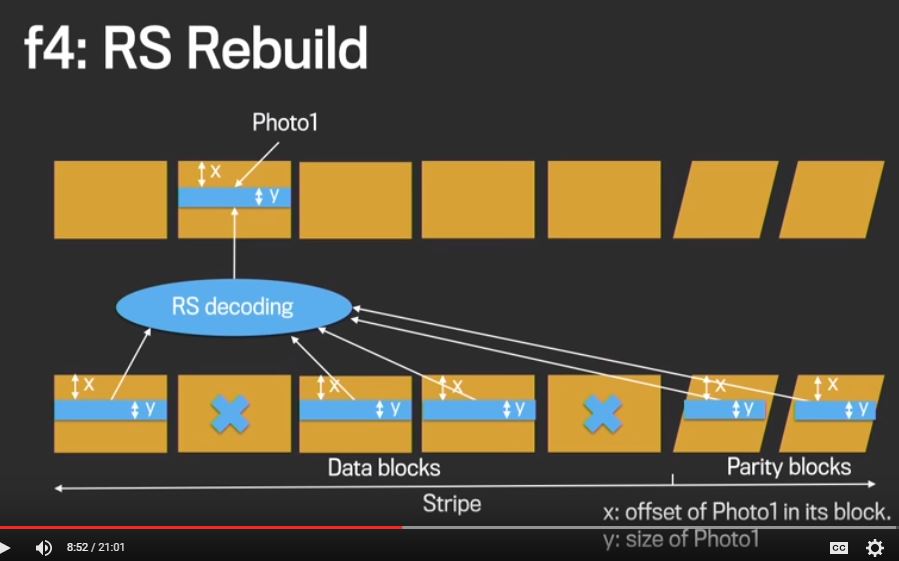

• RS rebuild

• Block placement policy
• Each stripe is placed in different racks (=>hosts)
• RS(10,4) is used in practice (1.4x)
• Tolerate 4 racks (->4 disks/hosts) failure

• f4 cell anatomy
• f4 storage consists of a set of cells
• One cell resides completely in one datacenter
• Cell consists of 3 kind of nodes, the index is distributed across storage nodes
• Storage
• Compute
• Coordinator.

• f4 Reads

• Reads with datacenter failures (2.1x)

• Haystack v.s. f4

4. Tips

• Hot data will be cached by cdn
