Consistency and Replication (II)

Basic Architecture for Replica Data  Management

System Model

Five phases in performing a request

• Front end issues the request
• Either sent to a single replica or multicast to all replicate managers
• Coordination
• Replica managers coordinate in preparation for the execution of the request
• i.e., agree is requests is to be performed and the ordering of the request relative to others
• Execution
• Agreement
• Reach consensus on effect of the request, e.g., agree to commit or abort in a transactional system
• Response

Mechanism for Sequential Consistency

• Primary-based replication protocols
• Replicated-write protocols
• Active replication using multicast communication
• Quorum-based protocols

Primary-backup Model

• Front ends only communicate with primary

Procedures

• Request
• FE issues a request containing a unique identifier to the primary replica manager
• Coordination
• The primary takes each request in the order in which it receives it
• Execution
• The primary executes the request and store the response
• Agreement
• If the request is an update, the primary sends the updated state, the response and the unique id to all backups. The backups send an acknowledgement.
• Response
• The primary responds to the front end, which hands the response back to the client.

Implementation

• Implements linearizability if primary is correct, since primary sequences all the operations

Failures

• If primary fails, the system retains linearizabilty if a single back becomes the new primary and if the new system configuration takes over exactly where the last left off
• If primary fails, it should be replaced with a unique backup
• Replica managers that survive have to agree upon which operation has been performed when the replacement primayr is over
• Requirements met if replica managers organized as a group and if primary uses view-synchronous communication to propagate updates to backups.

Replicate-Write Protocol

Active replication

• Front end multicasts request to each replica using a totally ordered reliable multicast
• System achieves sequential consistency but not linearizability
• Total order in which replica managers process requests may not be the same as real-time order in which clients made request.

Implementing Ordered Multicast

• Incoming messages are held back in a queue until delivery guarantees can be met
• The hold-back queue for arriving multicast messages

• Coordinate all machines needed to determine delivery order
• FIFO-ordering
• Easy
• Use a separate sequence number for each process
• Total ordering
• Use a sequencer
• Distributed algorithm with three phases
• Causal order
• Use vector timestamps

The ISIS algorithm for total ordering

Causal Ordering using Vector Timestamps

Quorum-based Protocols

• Procedures
• Assign a number of votes to each replica
• Let N be the total number of votes
• Define R = read quorum, W = write quorum
• R+W > N
• W > N/2
• guarantee that no two writes at the same time
• since if yes, than the vote for w_1 and w_2 are larger than N
• Only one writer at a time can achieve write quorum
• Every reader sees at least one copy of the most recent read (takes one with most recent version number)
• Examples

Scaling

• None of the protocols for sequential consistency scale
• To read or write, you have to either
• Contact a primary copy
• Use reliable totally ordered multicast
• Contact over half the replicas
• All this complexity is to ensure sequential consistency
• Even the protocols for causal consistency and FIFO consistency are difficult to scale if they use reliable multicast
• Can we weaken sequential consistency without losing some important features?

Highly Available Service

• Emphasis on giving clients access to the service with reasonable response time, even if some results do not conform to sequential consistency
• Examples
• Gossip
• Relaxed consistency
• Causal update ordering
• Bayou
• Eventual consistency
• Domain-specific conflict detection and resolution
• Coda (file system)
• Disconnected operation
• Use vector timestamp to detect conflicts

Consistency and Replication (I)

1. Replication

• Motivation

• Performance enhancement
• Enhanced availability/reliability
• Fault tolerance
• Scalability
• Tradeoff between benefits of replication and work required to keep replica consistent

• Requirements

• Consistency
• Depends upon applications
• In many applications, we want different clients making (read/write) requests to different replicas of the same logical items should not obtain different results
• Replica transparency
• Desirable for most application

2. Consistency Models

• Consistency model is a contract between processes and a data store
• If process follow certain rules, then the store will work correctly
• Needed for understanding how concurrent read and writes behave w.r.t shared data
• Relevant for shared memory multiprocessors
• Cache coherence algorithms
• Shared database, files
• Independent operations
• transactions

Strict Consistency

• Any read on a data item x returns a value corresponding to the result of the most recent write on x
• Challenge
• It requires absolute global time

Sequential Consistency

• The result of any execution is the same as if the read and write operation by all processes were executed in some sequential order and the operations of each individual process appear in this sequence in the order specified by its program.
• i.e., required to be seen by the same process in the same order
• Example

• Linearizability
• Definition of sequential consistency says nothing about time
• There is no reference to the "most recent" write operation
• Liearizability
• Weaker than strict consistency, stronger than sequential consistency
• Operations are assumed to receive a time stamp with a global available lock that is loosely synchronized
• The result of any execution is the same as if the operations by all processes on the data store were executed in some sequential order and the operations of each individual process appear in this sequence in the order specified by its program.

Causal Consistency

• Writes that are potentially causally related must be seen by all processes in the same order. Concurrent writes may be seen in a different order on different machines.
• Example
• (a) is not casual-consistent, since in process P2, a performs before b, so that in process P3 and P4, a should also performs before b
• While in (b) there is not casual relationship between a and b

FIFO consistency

• Writes done by a single process are seen by all other processes in the order in which there were issues.
• But writes from different processes may be seen in a different order by different process.

Weak Consistency

• Access to synchronization variable associated with a data store are sequential consistent.
• No operation on a synchronization variable is allowed to be performed until all previous writes have been completed everywhere
• No read or write operation on data items are allowed to be performed until all previous operations to synchronization variable have been performed.

Release Consistency

• Before a read or write operation on a shard data is performed, all previous requires done by the process must have completed successfully.
• Before a release is allowed to be performed, all previous reads and writes by the process must have completed.
• Access to synchronization variables are FIFO consistent (sequential consistent is not required).

Entry Consistency

• An acquire process of a synchronization variable is not allowed to perform with respect to a process until all updates to the guarded shared data have been performed with respect to that process.
• Before an exclusive mode access to a synchronization variable by a process is allowed to perform with respect to that process, no other process may hold the synchronization variable, not even in nonexclusive mode.
• After an exclusive mode access to a synchronization variable has been performed, any other process's next nonexclusive mode access to that synchronization variable may not be performed until it has performed with respect to that variable's owner.

3. A summary of Consistency Models

4. Weak Consistency Models

• The weak consistency models that use synchronization variable (release, entry consistency) are mostly relevant to shared multiprocessor systems
• Also modern CPU with multiple pipelines, out-of-order instruction execution, asynchronous writes, etc.
• In distributed systems, weak consistency typically refers to weaker consistency models than sequential consistency
• Casual consistency
• e.g., used in the Gossip system
• Optimistic approaches such as those used in Bayou, Coda that use application specific operations to achieve eventual consistency

5. Eventual Consistency

• Session Guarantees

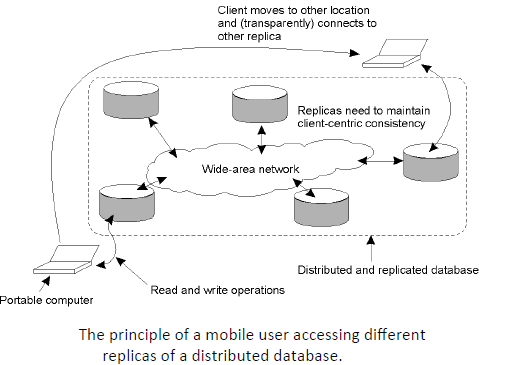

• When clients move around and connects to different replicas, strange things can happen
• Updates you just made are missing
• Database goes back in time
• Design choice
• Insist strict consistency
• Enforce some session guarantees, client-centric consistency

• Monotonic Reads

• If a process reads the value of a data item x, any successive read operation on x by that process will always return that same value on a more recent value.
• Disallow reads to a database less current than previous read
• Example error
• Get a list of email message, when attempts to read one, pop put "message does not exist"

• Monotonic Writes

• A write operation by a process on a data item x is completed before any successive write operation x by the same process
• Writes must follow any previous writes that occurred within their session

• Read your Writes

• A read operation by a process on a data item x is completed before any successive write operation on x by the same process.
• Every read in a session should see all previous writes in that session.
• Example error
• Deleted email message re-appear

• Writes Follow Reads

• A write operation by a process on a data item x following a previous read operation on x by the same process is guaranteed to take place on the same or a more recent value of x that was read.
• If a write W followed by a read R at a server X, ten at all other servers
• If W is in T's database, then any writes relevant to R are also avaialble
• After users outside session
• Traditional write/read dependencies preserved at all servers
• Two guarantees: ordering and propagation
• Order
• If a read precedes a write in a session, then that read depends on a previous non-session write, then previous write will never be seen after second write at any server. It may not be seen at all.
• Propagation
• Previous write will actually have propagated to any data base where the second write is applied.

6. Supporting Session Guarantees

• Responsibility of session manager, not servers
• Two sets
• Read set
• set of writes that are relevant to session reads
• Write set
• Set of writes that performed in session
• Update dependencies captured in read-sets and write-sets
• Causal order of writes
• Use Lamport clocks

[Leetcode] Reverse Linked List

Problem

Reverse a singly linked list.

Analysis

• 这道题就是要把相邻两个node的指针指向反一反，反的过程当中要keep track of next node，不然这时候 node.next 变成前一个节点了
• 所以我们采用两个指针，prev 和 curr 来记录相邻的两个节点
• 反之前，先记录 curr.next, 即 tmp = curr.next
• 然后可以反了，curr.next = prev
• 然后把prev 和 curr往右移，继续去处理还没反的nodes
• prev = curr
• curr = tmp
• Time: O(n)
• Space: O(1)

Code

[Leetcode] Sqrt(x)

Problem

Implement int sqrt(int x).

Compute and return the square root of x.

Analysis

• 二分搜索 [0,x]
• 若 mid*mid 等于x，或者 (mid*mid<x && (mid+1)*(mid+1)>x), 则返回mid
• 否则若mid*mid < x，则搜索 [mid+1, right]
• 否则若mid*mid > x, 则搜索 [left, mid-1]
• 注意 mid*mid 可能会溢出，要用long类型
• Time: O(log n)
• Space: O(1)

Code

Reference
[1] https://leetcode.com/problems/sqrtx/

Zero-Sum Game

Definition

The utility functions of both players sum up to 0

Equilibrium

Unique Equilibrium

• If the utility function of each player has concavity, then there exist a unique equilibrium.

[Leetcode] Unique Path II

Problem

Follow up for "Unique Paths":

Now consider if some obstacles are added to the grids. How many unique paths would there be?

An obstacle and empty space is marked as 1 and 0 respectively in the grid.

For example,

There is one obstacle in the middle of a 3x3 grid as illustrated below.

[
  [0,0,0],
  [0,1,0],
  [0,0,0]
]

The total number of unique paths is 2.

Note: m and n will be at most 100.

Analysis

• Similar to Unique Path except that we need to decide whether a position has obstacle or not
• If yes, the number of ways to it is 0

Code

[Leetcode] Unique Path

Problem

A robot is located at the top-left corner of a m x n grid (marked 'Start' in the diagram below).

The robot can only move either down or right at any point in time. The robot is trying to reach the bottom-right corner of the grid (marked 'Finish' in the diagram below).

How many possible unique paths are there?

Analysis

• 对于每一格，有两种到达它的方式，即从左边，或者从上边
• 所以 count[i][j] = count[i-1][j] + count[i][j-1]
• Time: O(n^2)
• Space: O(n^2)
• Space可以进行优化为O(n), 因为计算count每一行的值的时候只需要上一行的信息

Code

How to come up with new ideas in security domain

The followings are my own experience in finding research ideas in security domain.

Ideas from Security Threat

• What the defenders can do to improve security?
• How to detect attackers?
• How to defend against attackers?

For the cloud computing problem, the defenders can be further divided into two categories: (1) Cloud provider (2) Cloud benign users

• What the attackers can do to increase damage?

Ideas from Existing Work

• Improve
• Scalability of their mechanism
• Combine
• Can we combine other mechanisms with their mechanism
• New Problem
• Can we use the proposed mechanism to solve a different problem
• New Mechanism
• Can we solve the problem with a better mechanism

Naming

Naming Entities

• A name in a distributed system is a string of bits or characters that is used to refer to an entity
• Type of names
• Address
• The name of an access point of an entity
• Identifiers
• A name that uniquely identifies an entity
• Location-independent name
• A name that is independent from its addresses

Name Resolution

• A naming system maintains a name-to-address binding for resources
• Main problem in naming
• How to do name resolution in a distributed systems in a scalable way
• Approaches for name resolution closely tied to naming scheme
• Flat vs Structure naming
• In a flat name space, identifiers are random bit strings
• No information on location embedded in name

Name Resolution in a Flat Name Space

• Simple solutions that work in a LAN environment
• Broadcasting & Multicasting
• Message containing identifier of the entity is boardcast
• Machine with access point for the entity replies with the address of the access point
• ARP protocol for finding the data-link address of a machine given the IP address
• When network grows, multicast is more efficient
• Forwarding pointers
• When an entity moves from A to B, it leaves behind a reference to its new location at B
• Home-based Approaches
• Home agent keeps track of current location of mobile entity
• Hierarchical Approaches
• Similar to DNS

What is a DHT

• Distributed Hash Table
• key = hash(data)
• lookup(key) -> IP address
• send-RPC(IP address, PUT, key, value)
• Send-RPC(IP address, GET, key)  -> value
• Chord

Structure Naming Systems

• Names are organized into name spaces
• A name space can be represented as a labeled, directed graph wit two types of nodes
• Leaf nodes and directory nodes
• Absolute vs relative path names
• Local names vs global names
• Name resolution: the process of looking up a name
• Closure mechanism
• Knowing where and how to start name resolution
• Unix File Name Spaces

Linking and Mounting

• Symbolic link

• Mounting remote name spaces

Implementing Name Spaces

• Naming service
• A service that allows users and processes to add, remove, and lookup names
• Name spaces for large-scale widely distributed systems are typically organized hierarchically
• Three layers used to implement such distributed name spaces
• Global layer
• root node and its children
• Administrational layer
• Directory nodes within a single organization
• Managerial layer
• Example: DNS name space

Iterative vs Recursive Resolution

• Recursive

• puts a higher performance demand on each name server
• cons
• Too high for global layer name servers
• Pros
• Caching is more effective
• Communication costs may be reduces
• Example

• Iterative
• Example

Attribute-based Naming

• An entity is described in terms of (attribute, value) pairs
• Each entity can have several attributes
• Attribute-based naming service are called directory services
• LDAP (Lightweight directory access protocol) defacto industry standard
• Based on OSI X.500 directory service
• Another example: UDDI for web services

Cloud Virtual Machine Allocation

Concerns

When a user request for a virtual machine in the cloud, the cloud provider needs to allocate a VM for the user.

There are three concerns a cloud provider needs to take into account when doing the VM allocation.

• Load Balance
• Power Consumption
• Security
• For security, we aim to avoid the cloud covert channel attacks in which an attacker seeks to be co-locate with the target VM in order to extract private information from the victims.

Popular VM Allocation Policies

The following table [1] shows the popular VM allocation policies.

Reference

[1] Using Virtual Machine Allocation Policies to Defend against Co-resident Attacks in Cloud Computing, by Yi Han et al, in Transactions on Dependable and Secure Computing

Vickrey-Clarke-Groves (VCG) Mechanism

Introduction

• VCG can maximize the social welfare given the individuals are all "selfish"

Model

• Players
• There are $n$ game players, $P_1, P_2, \cdots, P_n$
• Actions
• The actions of the players are denoted as $X = (x_1, x_2, \cdots, x_n)$
• Payoff
• $v_i(X)$
• Real demand
• $v_i$
• Cost
• $p_i$ for its action
• Utility
• $u_i = v_i - p_i$

Definition

Following Nisan's work, the terms "mechanisms" and "incentive compatible" are defined as

Mechanism

• Given a set of n players, and a set of outcomes, A, let $v_i$ be the set of possible valuation functions of the form $v_i(a)$ which player $i$ could have for an outcome $a \in A$. A mechanism is a function $f: V_1 \cdot V_2 \cdot \cdots \cdot V_n \rightarrow A$. Given the evaluations claimed by the players, f selects an outcome, and n payment functions, $p_1, p_2, \cdots, p_n$, where $p_i = V_1 \cdot V_2 \cdot \cdots V_n \rightarrow R$.

The above defines Action and Reward.

Incentive Compatible

• For every player $i$, every $v_1 \in V_1$, $v_2 \in V_2$, $\cdots$, $v_n \in V_n$, and every $v'_i \in V_i$, where $a = f(v_i, v_{-i})$ and $a' = f(v'_i, v_{-i})$, then
• $v_i(a) - p_i(v_i, v_{-i}) \geq v_i(a') - p_i(v'_i, v_{-i})$, then the mechanism is incentive compatible.

Specifically, among those incentive compatible mechanisms, the Vickrey-Clarke-Groves (VCG) mechanism is the mostly used one.

The VCG generally seeks to maximize the social welfare of all players in one game, where the social welfare is calculated as $\sum^n_{i=1} v_i$. So the goal function of VCG is $argmax_{a \in A} \sum^n_{i=1} v_i$.

The VCG mechanism and the rule to design VCG mechanisms are defined as follows.

VCG Mechanism

• A mechanism, consisting of payment functions $p_1, p_2, \cdots, p_n$ and a function $f$, for a game with outcome set $A$, is a Vickrey-Clarke-Groves mechanism if $f(v_1, v_2, \cdots, v_n) = argmax_{a \in A} \sum^n_{i=1} v_i(a)$ ( f maximizes the social walfare) for some functions $h_1, h_2, \cdots, h_n$, where $h_i : V_{-i} \rightarrow R$ (h_i does not depend on $v_i$)
• $\forall v_i \in V$, $p_i(v_i) = h(v_{-i}) - \sum_{j \neq i} v_j$.

My understanding

• For user $i$, its reward is depended on others, and not related to its action
• But why in the payment function, it deducts other users' true value?

Clarke Pivot Rule

• The choice $h_i(v_{-i}) = max_{b \in A} \sum_{j \neq i} v_i(b)$ is called the Clark pivot payment. Under this rule the payment of player $i$ is
• $p_i(v_1, v_2, \cdots, v_n) = max_{b} \sum_{j \neq i} v_i(b) - \sum_{j \neq i} v_i(a)$ where $a= f(v_1, v_2, \cdots, v_n)$.

My understanding

• I didn't understand it yet.

[Leetcode] Best Time to Buy and Sell Stock II

Problem

Say you have an array for which the ith element is the price of a given stock on day i.

Design an algorithm to find the maximum profit. You may complete as many transactions as you like (ie, buy one and sell one share of the stock multiple times). However, you may not engage in multiple transactions at the same time (ie, you must sell the stock before you buy again).

Analysis

• Sum up all possible increase
• Time; O(n)
• Space; O(1)

Code

Reference

[1] https://leetcode.com/problems/best-time-to-buy-and-sell-stock-ii/

[Leetcode] Best Time to Buy and Sell Stock III

Problem

Say you have an array for which the ith element is the price of a given stock on day i.

Design an algorithm to find the maximum profit. You may complete at most two transactions.

Analysis

• 用一个数组pre记录在第i天或之前完成一个transaction的左右收益
• 用一个数组back记录从第i天或之后开始完成一个transaction的最大收益
• 则完成两个transactions的最大收益为 max(pre[i], back[i])

Code

Reference
[1] https://leetcode.com/problems/best-time-to-buy-and-sell-stock-iii/

[Leetcode] Best Time to Buy and Sell Stock

Problem

Say you have an array for which the ith element is the price of a given stock on day i.

If you were only permitted to complete at most one transaction (ie, buy one and sell one share of the stock), design an algorithm to find the maximum profit.

Analysis

• 遍历数组，记录当前最小值，记录当前最大profit
• 当前profit = 当前值 - 当前最小值
• 时间复杂度: O(n)
• 空间复杂度: O(1)

Code

Reference
[1] https://leetcode.com/problems/best-time-to-buy-and-sell-stock/

Client-Server Design Issues

Threads in Distributed Systems

• Multithreaded clients
• Thread can block waiting for server response but application/process is not blocked
• Multithreaded servers
• Simplified server code as opposed to finite-state-machine approach that users non-blocking system calls
• Can handle multiple client requests in parallel (while making blocking ystem calls)
• Improved performance over iterative servers on multiprocessor systems

NFS Architecture

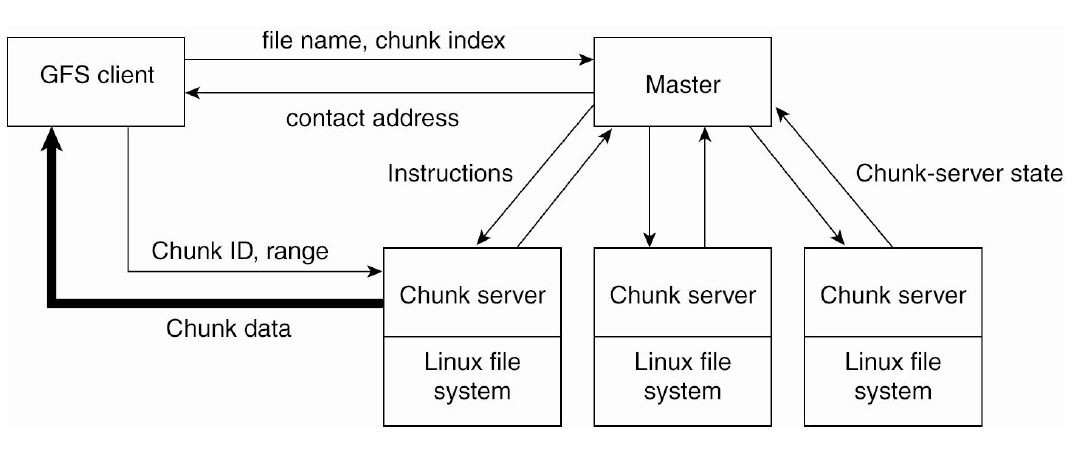

Google File System (GFS)

Semantics of File Sharing

[Leetcode] Longest Increasing Subsequence

Problem

Given an unsorted array of integers, find the length of longest increasing subsequence.

For example,
Given [10, 9, 2, 5, 3, 7, 101, 18],
The longest increasing subsequence is [2, 3, 7, 101], therefore the length is 4. Note that there may be more than one LIS combination, it is only necessary for you to return the length.

Your algorithm should run in O(n2) complexity.

Follow up: Could you improve it to O(n log n) time complexity?

Analysis

• 遍历所有的数字，同时维护一个valid数组，来保存当前扫描到的有用的数
• tail 表示当前valid数组的最后一个数，
• 对于当前读到的数x
• 如果x>tail，则把x append到数组中
• 如果x<valid数组的第一个数，则将其替换为x
• 否则，则二分查找到valid数组中第一个大于或等于x的数，替换为x
• 返回valid数组中有效的数个数

时间复杂度: O(nlogn)

Code

Reference
[1] http://www.geeksforgeeks.org/longest-monotonically-increasing-subsequence-size-n-log-n/
[2] https://leetcode.com/problems/longest-increasing-subsequence/

Web Service -- REST

What is REST

• a design pattern for implementing networked systems, stands for "Representational State Transfer"
• A client references a web resources using a URL
• The web serves as a guiding framework for the web
• HTTP is not just a protocol
• It provides an API (POST, GET, PUT, DELETE) for create, read, update, and delete operations on a resource
• Approach isolates application complexity at the end points (client and server) and keeps it out of the transport

Three Fundamental Aspects of REST

• Resources
• Every distinguishable entity is a resource. A resource may be a web site, an HTML page, and XML document etc.
• URLs
• Every resource is uniquely identified by a URL.
• Simple operations

REST vs. SOAP

REST

• The web is the universe of globally accessible information
• Resource oriented
• User-driven interactions via forms
• Few operations (generic interface) on many resources
• URI: Consistent naming mechanism for resources
• Focus on scalability and performance of large scale distributed hypermedia systems

SOAP

• The web is the universal transport of message
• Activity/Service oriented
• Orchestrated reliable event flows
• Many operations (service interface) on few resources
• Lack of standard naming mechanism
• Focus on design of integrated (distributed) applications

Web Service

Web Services Fundamentals

Two Competing Approaches

• REST-style
• SOAP-style

Four Fundamental Technologies

• XML
• Describing information sent over the network
• WSDL
• Defining web service capability
• SOAP
• Accessing web services
• UDDI
• Finding web services

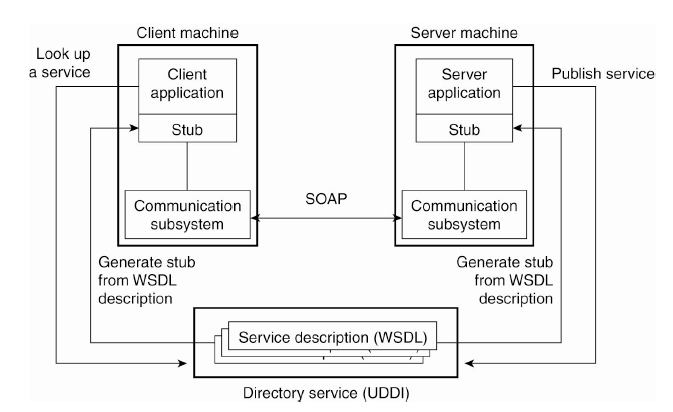

Web Service Infrastructure and Components

XML

• Has emerged as the standard solution for describing information exchanged between heterogeneous system
• Can be read by programs and interpreted in an application-specific way
• Example
• <Account>xx</Account>

WSDL: Describing the web service

• Provides functional description of network services
• IDL description
• Protocol and deployment details
• Platform independent description
• Extensible language
• As extended IDL: WSDL allows tools to generate compatible client and server stubs
• Allows industries to define standardized service interfaces
• Allows advertisement of service descriptions, enables dynamic discovery and binding of compatible services
• Used in conjunction with UDDI registry
• The main elements in a WSDL description

UDDI: Finding Web Service

• Universal Description, Discovery, Integration
• UDDI defines the operation of a service registry
• Data structures for registering
• Business
• Technical specification: tModel is a keyed reference to a technical sepcifcaiton
• Service and service endpoints
• Referencing the supported tModels
• The main UDDI data structures

SOAP

• Why SOAP
• A "wire protocol" necessary for accessing distributed object services
• Vendor and/or platform-specific wire protocols hinder interoperability
• SOAP
• An Internet standard specification, the goal of which is to define a platform and vendor-neural WIRE PROTOCOL based on Internet standard protocols [HTTP & XML] to access Web Services.
• Features
• Uses XML to package requests for services exposed by Web Services, and responds generates by Web services
• Typically uses HTTP as a transport protocol
• SOAP message
• Convey documents
• Support client-server communication

RESTful Approach

• Focus on using HTTP operations (GET, PUT, POST, DELETE) to manipulate data resources represented in XML
• No WSDL + SOAP

Security blogs

IT

IT技术博客大学习 http://blogread.cn/it/
网络安全研究国际学术论坛 http://www.inforsec.org/wp/
腾讯安全应急响应中心 http://security.tencent.com/index.php/blog
LinkedIn安全中心 https://security.linkedin.com/blog-archive


Security blog
- https://luyixing.wordpress.com/

[Leetcode] Two Sum

Problem

Given an array of integers, find two numbers such that they add up to a specific target number.

The function twoSum should return indices of the two numbers such that they add up to the target, where index1 must be less than index2. Please note that your returned answers (both index1 and index2) are not zero-based.

You may assume that each input would have exactly one solution.

Input: numbers={2, 7, 11, 15}, target=9
Output: index1=1, index2=2

Analysis

• 用一个hash表来围护每个数和其对应的index
• 如果有重复的数字，则overwrite， 即保留最后出现的index
• 然后遍历所有的数，如果 （target - 当前数）在哈希表中，且俩数的index不一样，则找到解了
• 复杂度
• Time: O(n)
• Space: O(n)

Code

Reference
[1] https://leetcode.com/problems/two-sum/

Remote Method Invocation - Design & Implementation

Middleware layers

Distributed Objects

Compile-time vs. Run-time Objects

• Objects can be implemented in many different ways
• Compile-time objects
• e.g., instance of classes written in object-oriented language like Java, C++
• Data-base objects
• Procedural languages like C,with an appropriate "wrapper code" that gives it the appearance of an object
• System like Java RMI support compile-time objects
• Not possible or difficult in language-independent RMI middleware such as CORBA
• These systems use object adapters
• Implementations of object interfaces are registered at an object adapter, which acts as an intermediary between the client and the object implementation

Persistent vs. Transient Objects

• Persistent objects
• continue to exist even if they are not contained in the address space of server process
• the "state" of a persistent object has to be stored on a persistent store, i.e., some second storage
• invocation requests result in an instance of the object being created in the address space of a running process
• many policies possible for object instantiation and (de)instantiation
• Transient objects
• Only exist as long as their container server process are running
• i.e., only exist in memory

Static vs Dynamic Remote Method Invocations

• Static invocation
• Typical ways for writing code that uses RMI is similar to the process for writing RPCC
• declare the interface in IDL, compile the IDL file to generate client and server stubs, link them to client and server side code to generate the client and the server executables
• requires the object interface to be known when the client is being developed
• Dynamic invocation
• The method invocation is composed at run-time
• invoke (object, method, input_parameters, output_parameters)
• Useful for applications where object interface are discovered at runtime
• e.g., object browser, batch processing systems for object invocations

Design Issues for RMI

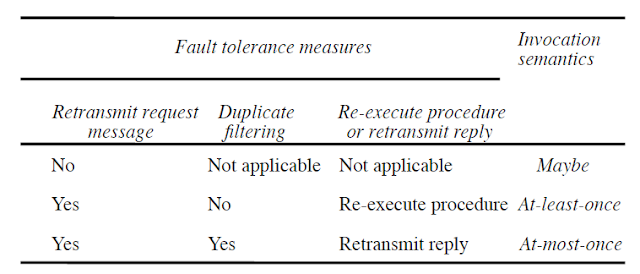

• RMI invocation semantics
• Invocation semantics depend upon implementation of Request-Reply protocol used by RMI
• Could be Maybe, At-least-once, At-most-once

• Transparency
• Should remote invocations be transparent to the programmer?
• Partial failure, higher latency
• Different semantics for remote objects, e.g., difficult to implement "cloning" in the same way for local and remote objects or to support synchronization operations e.g., wait/notify
• Current consensus
• Access transparency
• Remote invocations should be made transparent in the sense that syntax of a remote invocation is the same as the syntax of local invocation
• Distinguish
• But programmers should be able to distinguish between remote and local objects by looking at their interfaces,
• e.g., in Java RMI, remote objects implement the Remote interface

Implementing Issues for RMI

• Parameter Passing
• Representation of a remote object referece

• Request/Reply protocol
• Handling failures at client and/or server
• Issues in marshaling of parameters and results
• Input, output, inout parameters
• Data representation
• handling reference parameters
• Distributed object references
• handling failures in request-reply protocol
• Partial failure
• Client, server, network
• Supporting persistent objects, object adapters, dynamic invocations, etc

Marshalling

• Pack method arguments and results into a flat array of bytes
• Use a canonical representation of data types
• e.g., integers, characters, doubles
• Example
• CORBA CDR
• Java serialization

Handling failures

• Client unable to locate server
• Reasons
• Server has crashes
• Server has moved
• (RPC systems) client compiled using old version of service interfance
• System must report error (remote exception) to client
• Loss of transparency
• Request message lost
• Retransmit a fixed number of times before throwing an exception
• Reply message lost
• Client resubmits request
• Server choices
• Re-execute procedure
• Server should be idempotent so that it can be repeated safely
• Filter duplicates
• Server should hold on to results until ackowledged
• Server crashes after receiving a request
• At least once
• Keep trying till server comes up again
• At most once
• Return immediately
• Exactly once impossible to achieve
• Client crashes after sending a request
• If a client crashes before RPC returns, we have an "orphan" computation at server
• Waste resources, could also start other comutations
• Orphan detection
• Reincarnation
• Client broadcasts new epoch when it comes up again
• Expiration
• RPC has fixed amount of time to do work

Note

• Implementing the request-reply protocol on top of TCP
• Does not help in providing applications with different invocation semantics
• TCP does not help with server crashes
• If a connection is broken, the end points do not have any guarantees about the delivery of messages that may have been in transit

RMI Software Components

• Communication module
• Implements the request-reply protocol
• Remote reference module
• Responsible for translating between local and remote object references and for creating remote object references
• Maintains remote object table that maintains a mapping between local&remote object references
• E.g., Object Adapter in CORBA

RMI - Object Activation

• Activation of remote objects
• Some applications require that information survive for long periods of time
• However, objects not in user all the time, so keeping them in running processes is a potential waste of resources
• Object can be activated on demand
• E.g., standard TCP services such as FTP on UNIX machines are activated by inetd
• Active and passive objects
• Active objects
• Instantiated in a running processes
• Passive objects
• Not currently active but can be made active
• Implementation of its methods, and marshalled state stored on disk
• Activator responsible for
• Registering passive objects that are available for activation
• Starting named server processes and activating remote objects in them
• Keeping track of locations of servers for mote objects that it has already activated
• Examples
• CORBA implementation repository
• JAVA RMI has once activator on each server computer

RMI - Other Topics

• Persistent object stores
• An object that is guaranteed to live between activations of process is called a persistent object
• Stored the state of an object in a marshalled (serialized) form on disk
• Location service
• Objects can be migrated from one system to another during their lifetime
• Maintains mapping between object references and the location of an object
• Distributed Garbage Collection
• Needed for reclaiming space on servers
• Passing "behavior"
• Java allows objects (data+code) to be passed by value
• If the class for an object passed by value is not present in a JVM, its code is downloaded automatically
• Use of reflection in Java RMI
• Allows construction of generic dispatcher and skeleton

Distributed Garbage Collection

• Java approach based on reference counting
• Each server process maintains a list of remote processes that hold remote object references for its remote objects
• When a client first acquires a remote reference to an object, it make addRef() invocation to server before creating a proxy
• When a clients local garbage collector notices that a proxy is no longer reachable, it makes a removeRef() invocation to the server before deleting the proxy
• When the local garbage collector on the server notices that the list of client processes that have a more reference to an object is empty, it will delete the object (unless there are any local objects that have a reference to the object)
• Other approaches
• Evictor pattern
• Leases

Java RMI

lecture 4

Features

• Integrate with Java language and libraries
• Security, write once run anywhere, multithreaded
• Object oriented
• Can pass "behavior"
• Mobile code
• Not possible in CORBA, traditional RPC systems
• Distributed garbage collection
• Remoteness of objects intentionally not transparent
• Good for handling failures

Remote Interfaces, Objects, and Methods

• Object becomes remote by implementing a remote interface
• A remote interface extends the interface java.rmi.Remote
• Each method of the interface declares java.rmi.RemoteException in its throws clause in addition to any application-specific clauses

Creating distributed applications using RMI

1. Define the remote interfaces
2. Implement the remote objects and server
3. Implement the client
4. Compile the remote interface, server and client
5. Generate the stub and skeleton using rmic
6. Start the RMI registry
7. Start the server
8. Run the client

[Leetcode] Reverse Words in a String

Problem

Given an input string, reverse the string word by word.

For example,
Given s = "the sky is blue",
return "blue is sky the".

Analysis

• 首先split string by space
• 然后 append word in reverse order
• 注意 如果当前非空，在append下一个word之前，需要append空格

Code

Reference

[1] https://leetcode.com/problems/reverse-words-in-a-string/

[Code Interview] Count number of ones

Problem

Counting the number of 1 bits in the binary representation of a given integer.

Analysis

Method 1:

• shift the number right by one bit each time, and check whether the right-most bit is 1
• If yes, count++

Method 2:

• if n is not 0, count++
• assign n = n & (n-1), repeat until n is 0

Time complexity

• method 1: theta(n)
• method 2: O(n)

Code

Reference

[1] http://www.geeksforgeeks.org/count-set-bits-in-an-integer/

Ads Optimization Suggestions for Advertisers

Analyze where money goes

• Set dynamic conversion tracking

Ads optimization

• do ROI based optimization
• optimize your ads based on their ROI metrics
• make separate campaigns for high ROI ad groups
• make separate campaigns for different languages, geographic targeting
• create negative keywords in a shared folder, and add it to relevant campaigns
• extend your negative keyword lists at least once a week
• use flexible bidding for devices, days/hours, geographic regions, demographic target etc.
• set automatic budget increase for the best days of the week with higher search volume, and budget decrease for the worst days

Remarketing

• combined remarketing list
• similar user targeting

Reference
[1] https://www.quora.com/What-are-some-Google-AdWords-best-practices

Search Ads with Google

How it works

• Every time for a search result, it will do an auction to price different ad locations. The advertiser would need to pay only if the user clicks the ad.
• When the user clicks, the advertiser only needs to pay second-highest price.
• This can guarantee that they bid their true value.

Quality Score

• Click through rate
• Relevance
• Landing page

Ad Rank

• bid price * quality = ad rank

Cost Per Click (CPC)

• price to pay by each client in the rank list
• p1 = p2*q2/q1
• the last one in the rank list pay the minimum price

Reference

[1] https://www.quora.com/What-are-some-Google-AdWords-best-practices

雅诗兰黛红石榴面霜

Estee Lauder - Nutritious - Vita-Mineral Moisture Cream

这小瓶是之前买眼霜送的小样。

成分

• 采用萃取的红石榴精华。红石榴本身具有抗氧化功效，并且还蕴含着多种维他命、矿物质。

效果

• 我用的时候恰好是冬天，感觉很滋润。夏天用应该会太油。早晚都可以用，不搓泥。
• 质地比较薄，很好推开。
• 稍微有点提亮肤色的效果，尤其是刚刚擦上的时候。
• 没有什么味道。

评分

★★★★☆

Ads Optimization

Adaptive Shopping Campaigns

• optimize the structure of your shopping campaigns in order to improve their performance.
• help bidding higher on high-performance products
• save money by bidding lower on poor performers

Remarketing

Engage those people who've left your site or clicked your ads without buying anything by

• showing them relevant ads on search or display

Here are two ways to remarket

• Reach high-value customers with remarketing lists for search ads.
• modify your keyword bids, target search ads, or prevent ads from displaying based on inclusion in your AdWords remarketing list.
• you can track the performance of each remarking list in any associated campaign.
• Re-engage shopper with display remarking from search ads
• remarket to users instantly with display ads on the Google Display Network or across exchanges via DoubleClick Bid Manager.

Reference
[1] http://doubleclickadvertisers.blogspot.com/2015/10/doubleclick-search-guide-to-holidays.html

Using real-time data to optimize your search ads

Gaps in search ads

Long Tail

• Retailers today often have hundreds of thousands of products, but they only advertise on average of 49% of their inventory with search ads. Reason
• Difficult to maintain so many keywords and bids on their own
• They often don't see the value of their long-tail inventory items

Real Data

Link purchases to ads

• identify the impact of advertising
• on business goals like maximizing profitability or selling off inventory
• improve ad targeting by
• matching ads to products that consumers are most interested in
• understand the value of brand and general terms in
• selling your highest margin or most important products

Justin Johnson, Paid Search Manager at Cabela's explains

• Having insights into where we spend our money, in additional to what people are looking for, has been invaluable in helping us make better decisions.
• We have a better look into where we may not have adequate coverage, and are able to quickly make changes to address that.
• Being able to pull in margin data to see if certain keywords are better or worse at driving profitable traffic than we anticipated helps us be more thoughtful with our spend.

Machine-learning-powered Bid Strategy

• Adjust bid strategies to respond quickly to the bids that deliver results.

Cross-device Conversion Tracking

• helps bid optimization system make the most of your mobile traffic.

Reference

[1] http://doubleclickadvertisers.blogspot.com/2014/10/doubleclick-search-using-real-time-data.html
